Top 5 Safety Features Every Industrial Laser Machine Should Have
Industrial laser machines are incredibly powerful tools, capable of cutting through thick steel in seconds. While they are highly efficient, they also pose significant risks if not handled with the proper safety features. Whether you’re an operator or a workshop owner, ensuring your machine is equipped with the right safety systems is paramount.
Here are the top 5 safety features that every modern industrial laser machine should have.
1. Fully Enclosed Work Area (Class 1 Rating)
High-power fiber lasers operate at a wavelength that is invisible to the human eye but extremely dangerous to your retina.
- Why it’s essential: A full enclosure prevents accidental exposure to the laser beam and scattered radiation.
- Bonus: It also helps contain the smoke and fumes generated during the cutting process, allowing for more effective filtration.
2. Certified Laser Safety Glass
If your machine has viewing windows, they must be made of certified laser safety glass.
- The Standard: Look for glass that is rated for the specific wavelength of your laser (usually 1064nm for fiber lasers).
- Function: This specialized glass filters out the harmful radiation while still allowing the operator to safely monitor the cutting process.
3. Interlocked Access Doors
An interlock is a switch that automatically shuts off the laser if a door or panel is opened while the machine is running.
- Prevention: This prevents an operator from accidentally sticking their hand (or head) into the path of the beam during a live cut.
- Compliance: Most international safety standards (like CE or FDA) require active interlocks on all access points.
4. Automatic Fire Suppression and Fume Extraction
Laser cutting involves high heat and combustible materials (like oil on metal or wooden sheets), making fire a constant risk.
- Fire Suppression: Modern machines often include sensors that detect flames or excessive heat and can trigger a CO2 or dry-chemical fire suppressor.
- Fume Extraction: Effective ventilation is not just about smell—it’s about removing toxic particles and gases from the air to protect the operator’s lungs.

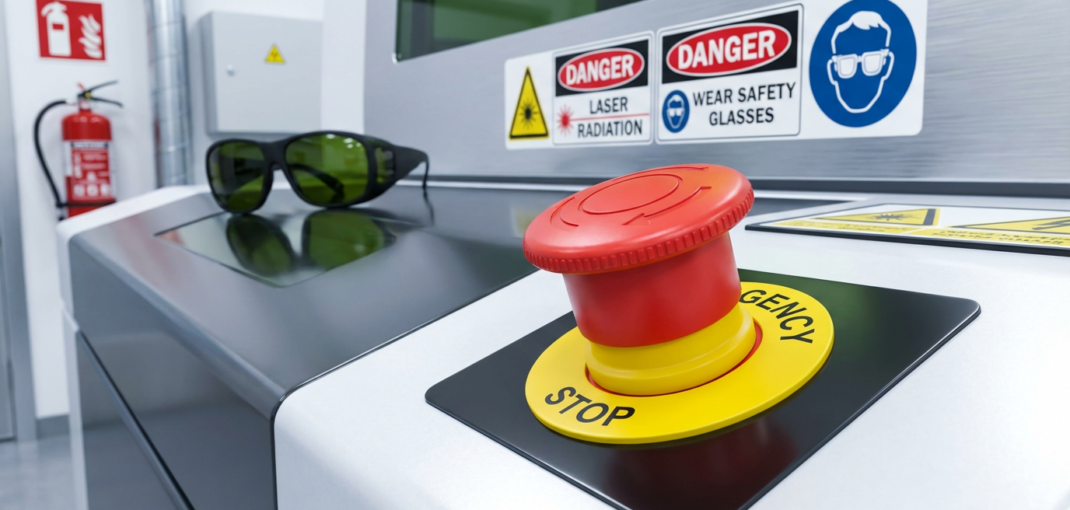

5. Clearly Accessible Emergency Stop (E-Stop) Buttons
It sounds basic, but the placement and reliability of E-Stop buttons are critical.
- Placement: There should be an E-Stop button on the main control console, and ideally, another one at the rear or side of the machine.
- Instant Response: Pressing the E-Stop should immediately cut power to the laser source and the motion controllers, bringing all movement to an absolute halt.
Safety Comparison Checklist
| Feature | Primary Risk Mitigated | Importance |
|---|---|---|
| Full Enclosure | Eye & Skin Damage | Critical |
| Interlocks | Physical Injury | High |
| Fume Extraction | Respiratory Health | High |
| E-Stop | Uncontrolled Movement | Essential |
| Fire Sensors | Fire / Property Damage | High |
Conclusion
Safety should never be an afterthought in an industrial setting. By investing in a machine with these five essential features, you protect your most valuable asset: your people.
