The Ultimate Maintenance Checklist for CNC Linear Guide Rails
Linear guide rails are the foundation of precision in any CNC machine. They allow for smooth, accurate movement across the X, Y, and Z axes. However, without proper maintenance, these rails can become contaminated, worn, or corroded, leading to poor surface finishes and expensive machine downtime.
Follow this ultimate maintenance checklist to keep your CNC linear guide rails in top condition.
Why Maintain Your Linear Rails?
A well-maintained rail ensures:
- Precision: Smooth movement without jitter or backlash.
- Longevity: Significantly increases the lifespan of the carriage blocks and rails.
- Efficiency: Reduces friction, putting less stress on your stepper or servo motors.
Daily Maintenance (After Every Shift)
- Visual Inspection: Check for any visible debris, metal chips, or dust on the rails.
- Surface Cleaning: Use a clean, lint-free cloth to wipe away any standing coolant or oil that may have collected chips.
- Wiper Check: Ensure the wipers on the ends of the carriage blocks are making proper contact and aren’t damaged.
Weekly Maintenance
- Deep Clean: Move the carriage to the end of the rail and clean the entire length with a specialized industrial cleaner (avoid harsh solvents that can damage seals).

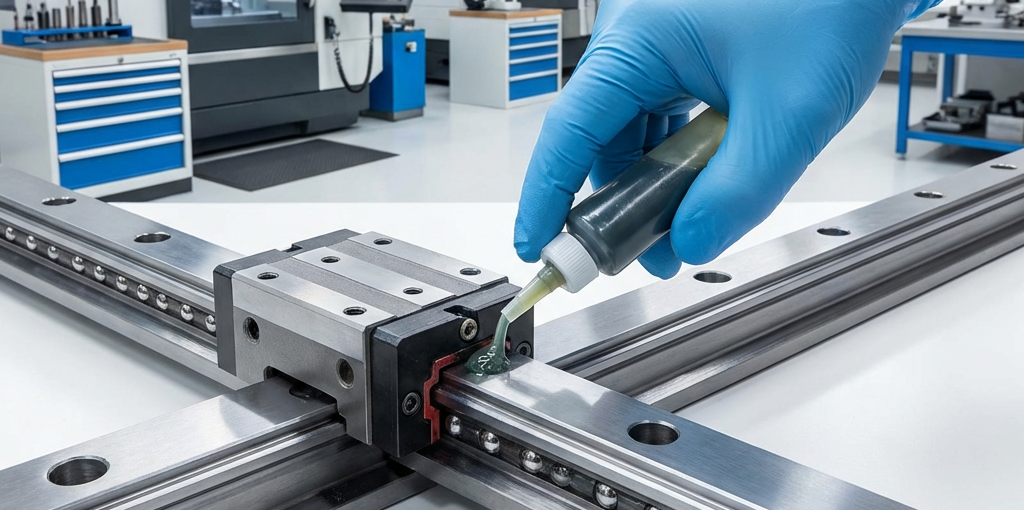

- Re-Lubrication: Apply a thin layer of the manufacturer-recommended grease or oil.
- Scraping: If you find any hardened buildup, carefully remove it with a soft scraper (plastic or brass) to avoid scratching the hardened steel rail.
Monthly Maintenance
- Check for Play: Gently try to rock the carriage block on the rail. If there is any noticeable “slop” or play, it may be time to adjust the preload or replace the bearings.
- Inspect Mounting Bolts: Ensure all bolts securing the rail to the machine bed are tight and haven’t vibrated loose.
- Corrosion Check: Look for any signs of pitting or rust, especially in humid environments. If found, clean immediately and apply a rust inhibitor.
Recommended Lubrication Types
| Machine Type | Preferred Lubricant | Frequency |
|---|---|---|
| Hobbyist Router | Lithium-based Grease | Every 40-50 hours |
| Industrial Mill | Way Oil (e.g., ISO 68) | Continuous (Auto-lube) |
| High-Precision Laser | Synthetic Low-Friction Oil | Monthly |
Pro Tip: Don’t Over-Grease!
Many users believe “more is better” when it comes to grease. However, over-greasing can actually trap heat and attract more contaminants, causing the very wear you’re trying to prevent. Only apply the amount recommended by your machine’s manual.
Conclusion
By incorporating these simple maintenance steps into your routine, you can ensure your CNC machine continues to produce high-quality parts for years to come. Remember, a clean machine is a precise machine.
