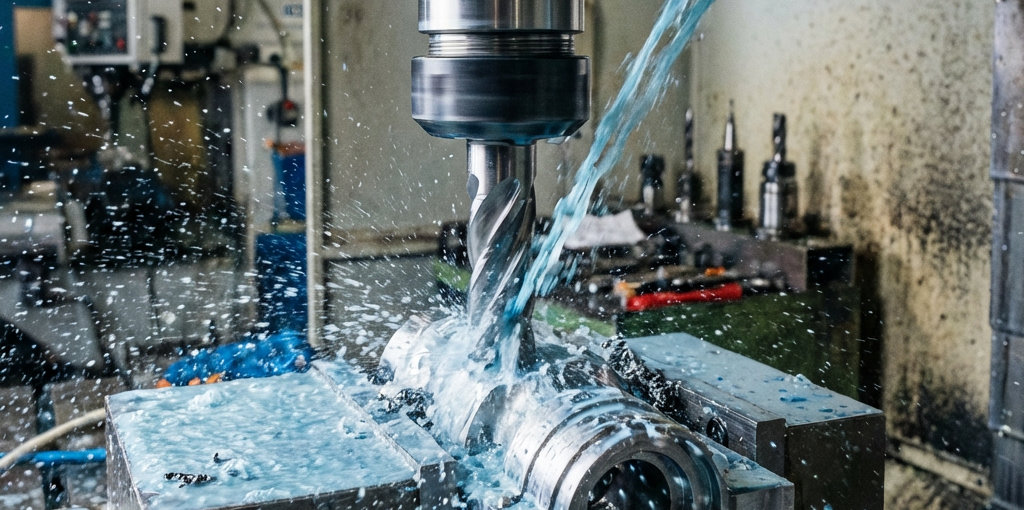

5 Common Reasons for CNC Vibration and How to Fix Them
Vibration, often referred to as “chatter” in the machining world, is one of the most frustrating challenges CNC operators face. Not only does it produce a poor surface finish, but it also accelerates tool wear and can even damage your CNC machine’s spindle over time. Understanding the root causes of CNC vibration is the first step toward achieving precision and extending the life of your equipment.
In this guide, we explore the five most common reasons for CNC vibration and provide actionable solutions to get your production back on track.
1. Worn or Improperly Seated Tooling
The connection between the cutting tool and the spindle is critical. If the tool is not held securely or if the tool holder itself is worn, vibration is inevitable.
- The Cause: Worn collets, damaged tool holders, or “runout” (where the tool doesn’t rotate perfectly around its axis).
- The Fix: Inspect your collets and tool holders regularly. If you see signs of wear or pitting, replace them immediately. Ensure the tool is cleaned and seated correctly before tightening.
2. Incorrect Feeds and Speeds
Machining is a delicate balance of physics. If your spindle speed (RPM) or feed rate (IPM) is out of sync with the material and tool properties, the tool will bounce rather than cut smoothly.
- The Cause: Running the spindle too fast for a large diameter tool or having a feed rate that is too slow, causing the tool to “rub” rather than “bite.”
- The Fix: Use a reliable speed and feed calculator. Experiment by slightly reducing the spindle speed or increasing the feed rate to find the “sweet spot” where chatter disappears.
3. Lack of Workpiece Rigidity
If the material you are cutting isn’t held firmly, it will vibrate as the tool makes contact. This is especially common when machining thin plates or long, slender parts.
- The Cause: Weak clamping, insufficient vacuum pressure, or overhanging parts that aren’t supported.
- The Fix: Enhance your workholding. Use more clamps, increase vacuum zones, or use a sacrificial “spoiler board” to provide better support. For long parts, consider using a steady rest or tailstock if applicable.
4. Unbalanced Spindle or Tooling
At high speeds, even a tiny weight imbalance can create massive centrifugal forces that lead to vibration.
- The Cause: Debris inside the spindle taper, an unbalanced tool holder, or internal bearing wear within the spindle.
- The Free Fix: Clean the spindle taper and tool holders with a lint-free cloth. Ensure no chips or dried coolant are interfering with the seating.
- The Professional Fix: If vibration persists, your spindle bearings may be failing. Contact a professional for a vibration analysis and spindle rebuild.
5. Machine Frame and Foundation Issues
Sometimes the problem isn’t the tool or the part, but the machine itself. A CNC machine that isn’t level or is sitting on a weak floor can amplify vibrations.
- The Cause: Loose foundation bolts, unlevel machine bed, or resonance from the machine’s own structure.
- The Fix: Check that your CNC machine is perfectly level using a precision spirit level. Ensure all anchor bolts are tight and that the machine is placed on a solid, reinforced concrete floor.
Conclusion
Vibration in CNC machining is a symptom that something is out of balance. By methodically checking your tooling, parameters, workholding, and machine health, you can eliminate chatter and achieve the high-precision results your customers expect.
