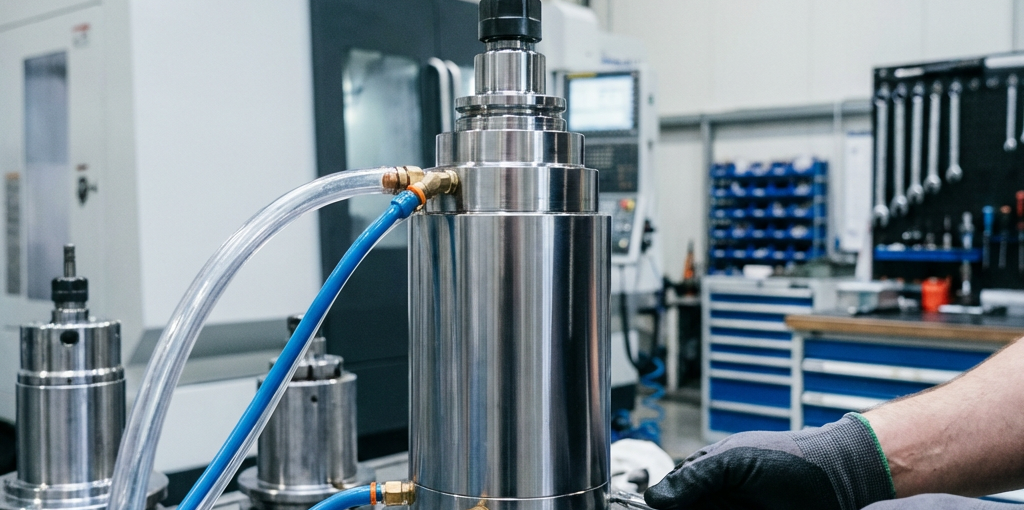

Mastering Water Cooled Spindle Maintenance: A Guide to CNC Longevity
In the world of high-precision CNC machining, the spindle is the heart of your operation. Among various types, water cooled spindles are favored for their ability to maintain consistent temperatures during long production runs, ensuring dimensional stability and quiet operation. However, their reliance on a cooling circuit introduces specific maintenance requirements that, if ignored, can lead to premature failure.
Proper maintenance isn’t just about avoiding repairs; it’s about maximizing your Return on Investment (ROI) and ensuring every cut is as precise as the first. Here is your comprehensive guide to maintaining your water cooled spindle.
1. Water Quality and Cooling System Health
The most critical factor for a water cooled spindle is the quality of the coolant.
- Use Deionized or Distilled Water: Tap water contains minerals that can cause scale buildup inside the spindle’s cooling jackets, drastically reducing cooling efficiency.
- Add Corrosion Inhibitors: Use a specialized spindle coolant or a mixture of distilled water and a high-quality corrosion inhibitor (like those used in PC water cooling or specialized industrial coolants). Avoid automotive antifreeze unless specified by the manufacturer, as it can be too viscous.
- Monitor Flow Rate: Regularly check that the water pump is functioning correctly and that there are no kinks in the hoses. A “flow indicator” is a cheap but invaluable addition to your cooling loop.
- Change Coolant Regularly: Over time, coolant can become contaminated or lose its chemical properties. Replace it every 6–12 months, or more frequently if you notice discoloration.
2. Temperature Management
Heat is the enemy of precision bearings.
- Optimal Temperature Range: Most spindles operate best when the coolant is between 20°C and 30°C. If the ambient temperature is high, consider using a dedicated industrial water chiller instead of a simple bucket and pump.
- Interlock Systems: If your CNC controller supports it, set up an interlock that prevents the spindle from starting unless the cooling pump is active and flow is confirmed.
3. Regular Cleaning and External Inspection
- Clean the Taper: The internal taper (where the collet sits) must be kept pristine. Even a tiny speck of dust can cause “runout,” leading to poor surface finishes and broken tools. Use a dedicated taper cleaner or a lint-free cloth with a bit of degreaser.
- Check Hose Connections: Inspect for leaks at the spindle inlet and outlet. Water leaking into the electrical housing or bearings is a death sentence for a spindle.
- Air Pressure (for Pneunatic Spindles): If your spindle uses air for cooling or tool changes, ensure the air is dry and filtered. Moisture in the air line causes internal rust.
4. Operational Best Practices
- The Warm-Up Routine: Never jump straight to full RPM. Run your spindle at 25%, 50%, and 75% of its max speed for 5 minutes each at the start of the day. This distributes the bearing grease evenly.
- Listen to the Bearings: A healthy spindle hums; a failing one growls or screeches. If you notice unusual vibrations or noise, stop immediately and investigate.
- Avoid Overloading: Use appropriate feed rates and depths of cut. Overloading doesn’t just stall the motor; it puts excessive lateral force on the precision bearings.
5. Summary Maintenance Checklist
| Frequency | Task |
|---|---|
| Daily | Check coolant levels and flow; Perform warm-up routine; Clean taper. |
| Weekly | Inspect hoses for leaks or kinks; Check coolant for clarity. |
| Monthly | Clean or replace water filters; Check electrical connections. |
| Yearly | Full coolant flush and replacement; Inspect pump and chiller performance. |
Conclusion
A well-maintained water cooled spindle can provide years of reliable service. By focusing on water quality, temperature control, and cleanliness, you protect the most expensive component of your CNC machine. Remember, 15 minutes of preventive maintenance is worth more than 15 hours of downtime.
