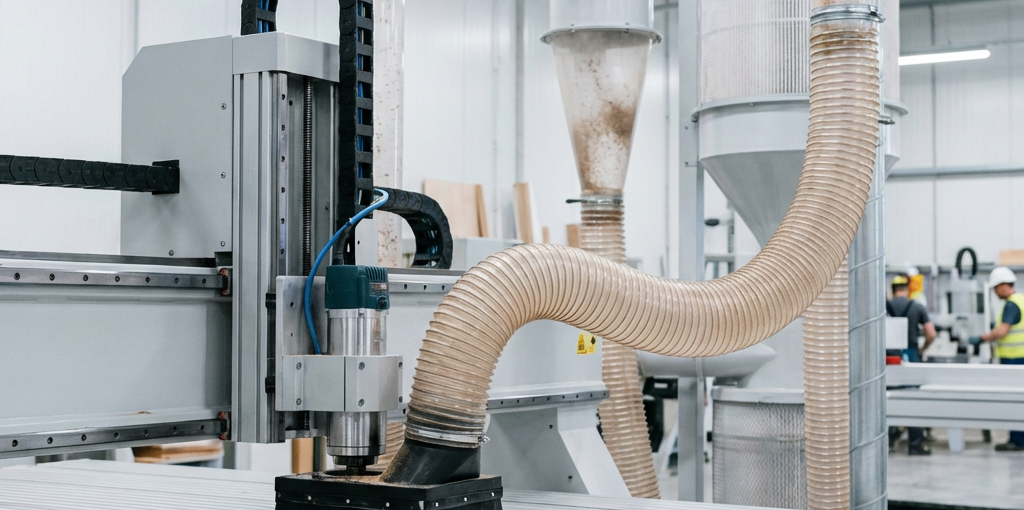

Dust Collection Strategies for High-Volume CNC Routing
In the world of high-volume CNC routing, efficiency and precision are paramount. However, one often overlooked factor that can significantly impact both is dust management. Without an effective dust collection strategy, shops face increased machine wear, health risks for operators, and diminished finish quality. This article explores essential strategies for optimizing dust collection in demanding production environments.
1. Optimize Your Dust Hood Design
The dust hood is the first line of defense. For high-volume routing, a standard hood might not suffice. Consider:
- Pressure-Foot Style Hoods: These provide a tighter seal against the material, ensuring that even the finest particles are captured at the point of cut.
- Adjustable Height: Ensure the hood can be adjusted to maintain the optimal distance from the workpiece, regardless of material thickness.
2. Upgrade to High-Efficiency Industrial Collectors
Standard shop vacuums or small dust collectors aren’t built for the continuous output of high-volume CNC routing. Industrial-grade collectors offer:
- Higher CFM (Cubic Feet per Minute): Ensuring a strong enough vacuum to pull chips away instantly.
- Cyclone Technology: Centrifugal force separates heavier chips from fine dust, preventing premature filter clogging.
- HEPA Filtration: Essential for capturing microscopic particles that can cause long-term health issues.
3. Ductwork Layout and Maintenance
The efficiency of your dust collection system is only as good as its ductwork.
- Minimize Bends: Every 90-degree turn reduces airflow efficiency. Use long-radius elbows where possible.
- Smooth Internal Surfaces: Avoid flexible hoses for long runs; use smooth-walled metal or PVC ducting to reduce friction.
- Regular Inspections: Check for leaks, clogs, or build-up that can reduce suction over time.
4. Source Capture at the Tooling
Modern CNC tooling can assist in dust management. Some router bits are designed to “pump” chips upward toward the suction hood. Combining these with a powerful vacuum system creates a highly efficient chip removal process.
5. Integrating with CNC Parts Market
Choosing the right components for your CNC setup is crucial. At CNC Parts Market, we provide precision-engineered components, including high-quality spindles and accessories that are compatible with advanced dust collection systems. Investing in the right hardware from the start ensures your high-volume operations remain clean, safe, and efficient.
| Strategy Component | Impact on Efficiency | Maintenance Level |
|---|---|---|
| High-CFM Collector | High | Medium |
| Cyclone Separator | High | Low |
| Optimized Ducting | Medium | Low |
| Pressure-Foot Hood | High | Medium |
By implementing these dust collection strategies, CNC shops can enhance tool life, improve operator safety, and maintain the high-quality finishes that customers expect in a competitive market.
